From patterns to materials

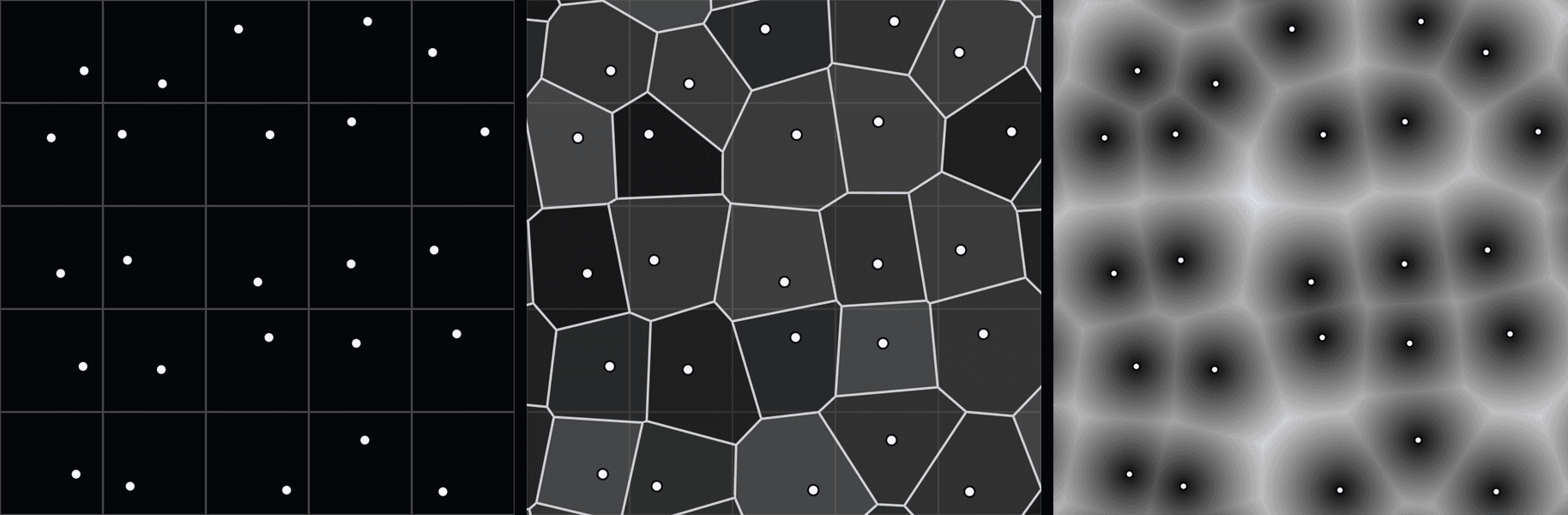

Most of the patterns start from a combination of smooth random noise and a cellular pattern. For the cellular pattern, dots are scattered at random through space, one inside each cube of an invisible 3D grid. The grid only keeps the dots evenly spread and makes the nearest one quick to find; it never shows up in the result. Every spot on the surface belongs to whichever dot is nearest, which splits the surface into irregular cells, one per dot, with a border wherever two dots are equally close. The pattern's value is the distance to that nearest dot: zero on the dot, growing towards the cell's border.

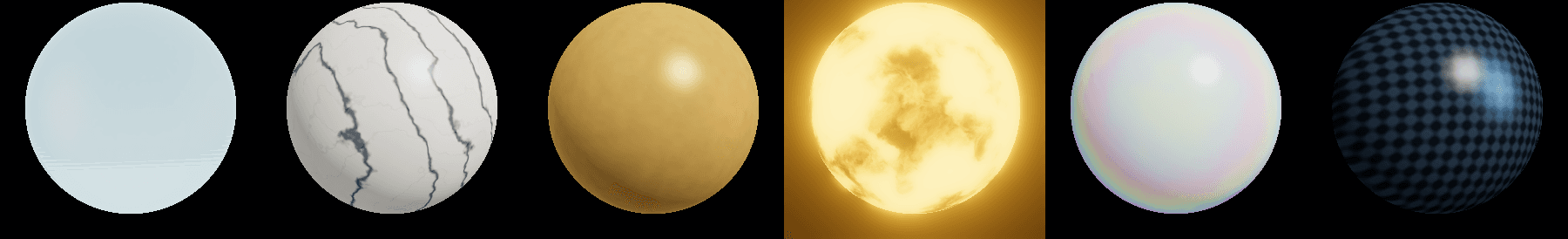

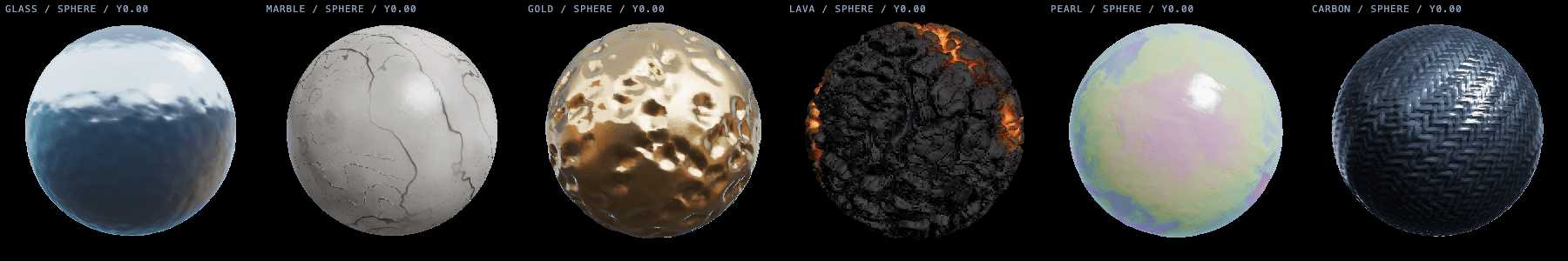

These patterns get used in three ways: as the height of the surface (which sets the bumps and how light catches them), to blend between colours, and to decide where effects like a glow appear. Each material combines them differently:

• Hammered gold: the distance to the nearest dot becomes the depth of a dent, so each dot is one hammer strike, deepest at its centre and rising to a ridge where two dents meet.

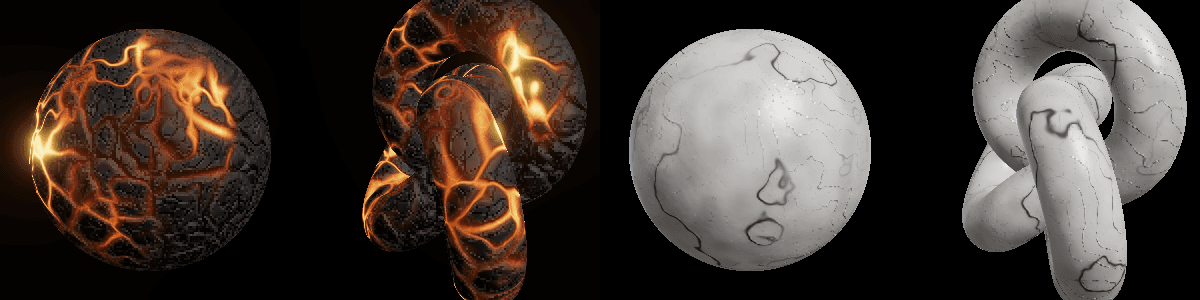

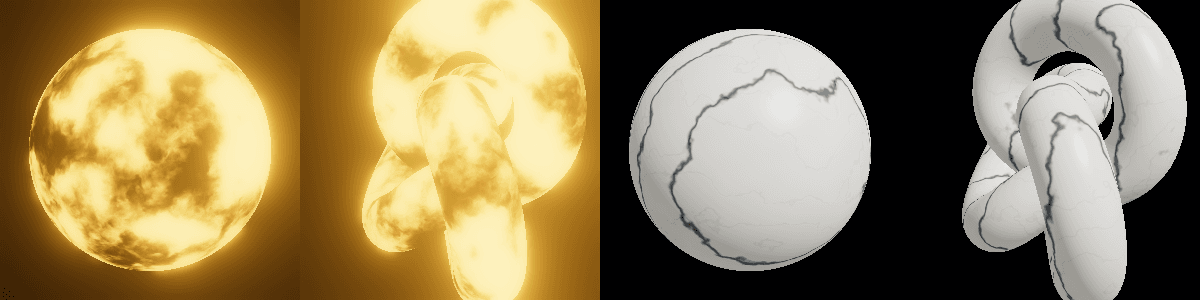

• Lava rock: the gap between the nearest and second-nearest dot drops to zero exactly on the border between two cells. Those borders become glowing cracks, and the cells between them become plates of cooled rock.
• Veined marble: noise bends a set of straight stripes into wandering veins, and a second layer of noise adds cloudy light and dark patches to the stone.
• Pearlescent: noise folded back on itself makes irregular growth rings, and the rings set the thickness of a thin film whose colour shifts as the viewing angle changes.

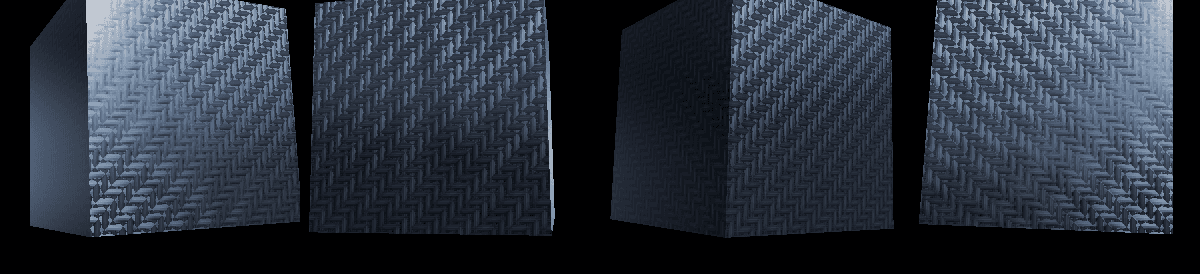

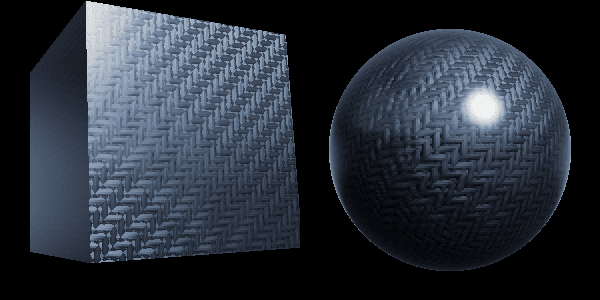

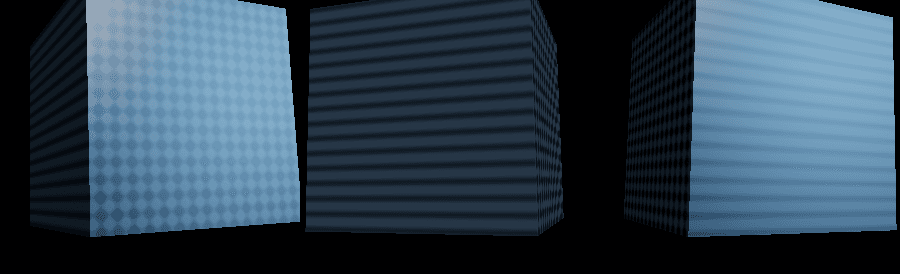

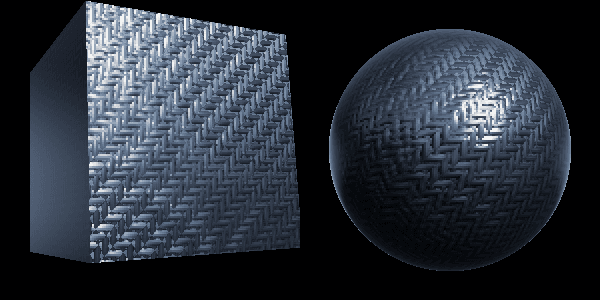

• Carbon fibre: no randomness at all, just a repeating weave built from waves.
• Glass: a faint layer of noise frosts the surface. Most of the look comes from bending light through the body instead.

This is the cellular pattern the gold and lava are built on:

float worley(vec3 p) {  // p: a position in 3D  vec3 i = floor(p);    // which cube it's in  vec3 f = fract(p);    // where inside that cube  float d = 1.5;        // nearest distance found so far  // Check this cube and the 26 around it (3 x 3 x 3)  for (int x = -1; x <= 1; x++) {    for (int y = -1; y <= 1; y++) {      for (int z = -1; z <= 1; z++) {        vec3 g = vec3(float(x), float(y), float(z));        // hash33 gives each cube its random dot position        d = min(d, length(g + hash33(i + g) - f));      }    }  }  return d;}

From bumps to displacement

Every material started out bump-mapped. Bump mapping doesn't change the shape, only how light hits it: wherever the height pattern slopes, the surface is lit as if it were tilted that way, so a flat face looks dented. The height pattern is computed from the same noise and cellular patterns above, not stored as an image. The code below finds that slope (the gradient of the height pattern) at every pixel.

vec3 bumped(vec3 N, vec3 position, float height, float amplitude) {  // Ease off as displacement takes over the large shapes  amplitude *= 1.0 - 0.40 * uDisplace;  vec3 dpdx = dFdx(position);  vec3 dpdy = dFdy(position);  float dhdx = dFdx(height);  float dhdy = dFdy(height);  vec3 r1 = cross(dpdy, N);  vec3 r2 = cross(N, dpdx);  float det = dot(dpdx, r1);  if (abs(det) < 1e-12) return N;  vec3 gradient = sign(det) * (dhdx * r1 + dhdy * r2);  return normalize(abs(det) * N - amplitude * gradient);}

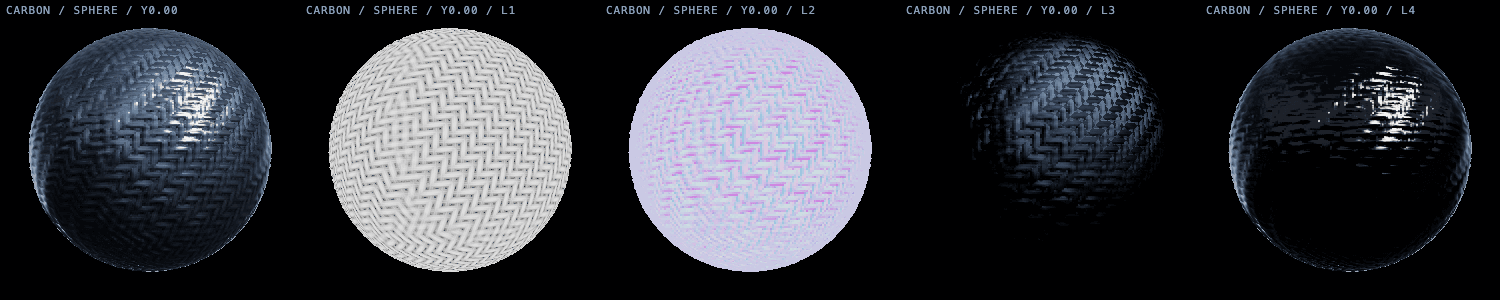

The toggle row on each card shows these layers separately: the height pattern, the tilted surface it produces, and the light layers stacked on top.

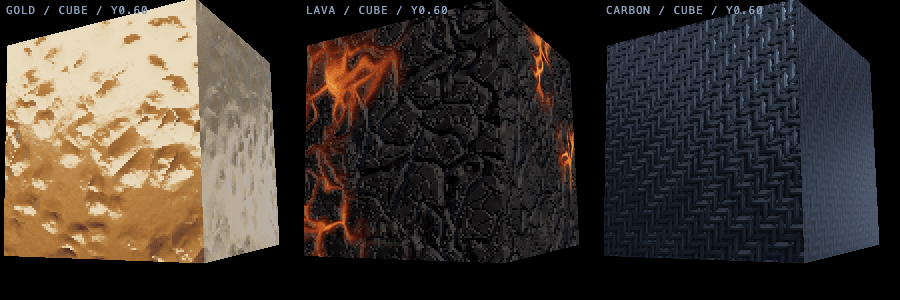

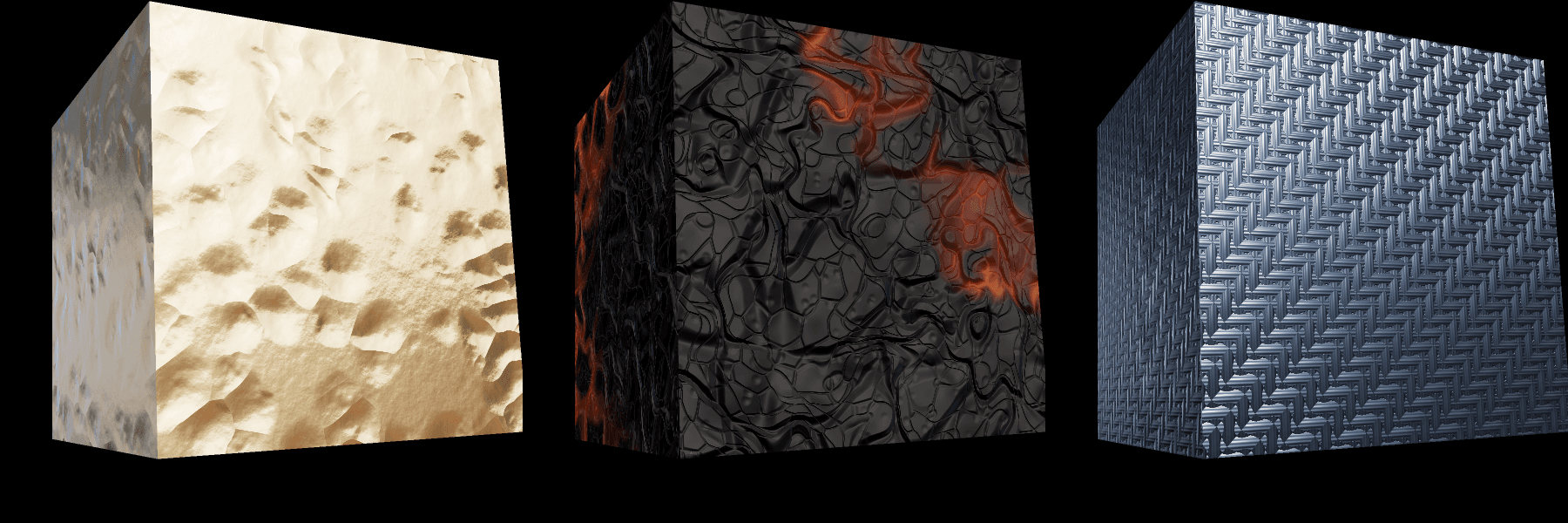

However, bump maps have a shortcoming: since the shape never changes, the outline stays smooth. No matter how deeply pitted a cube looked, its edges stayed perfectly straight, so I pushed for displacement: the same height pattern now moves the mesh's vertices in and out. That bought three things bumps can't:

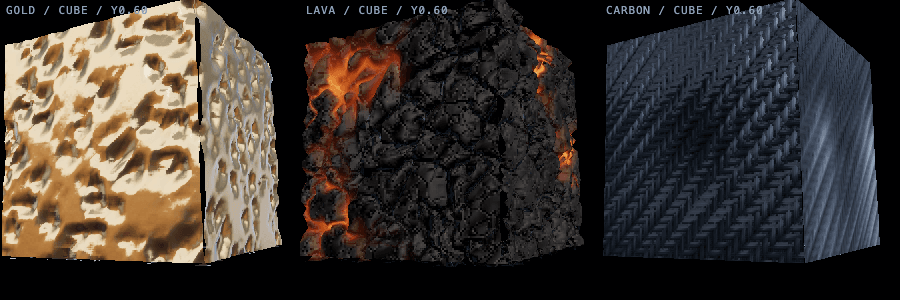

• A bumpy outline: the dents, cracks and weave now show along the edges of the shape instead of stopping short of them.
• Real depth: raised parts hide the dips behind them as the shape turns, instead of looking painted on.
• Texture that still looks raised near the edges, where the surface turns away from you and bump mapping stops being convincing.

Bumps didn't go away. The mesh can only move where it has vertices, so the finest detail (the weave's filaments, the gold's orange-peel texture) is still bumps, and the bumps ease off as displacement rises so the large shapes aren't counted twice. Every card has a slider for it, like dent depth on the gold or fissure depth on the lava, running from bumps only to fully displaced.

Closing the seams

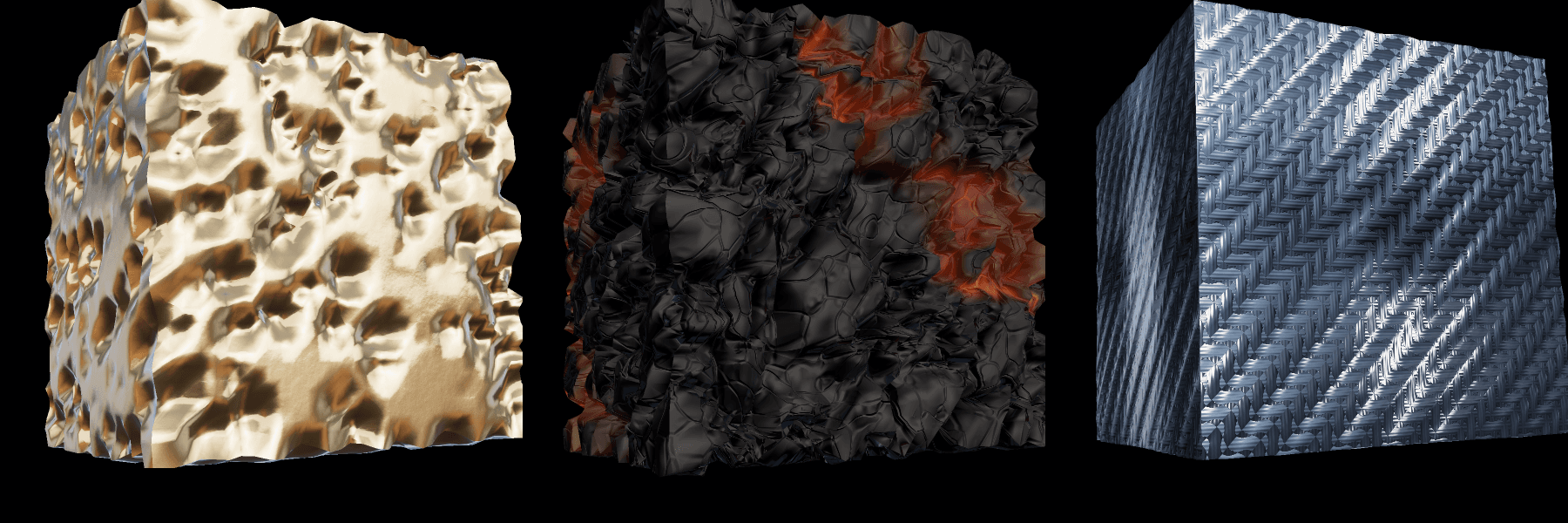

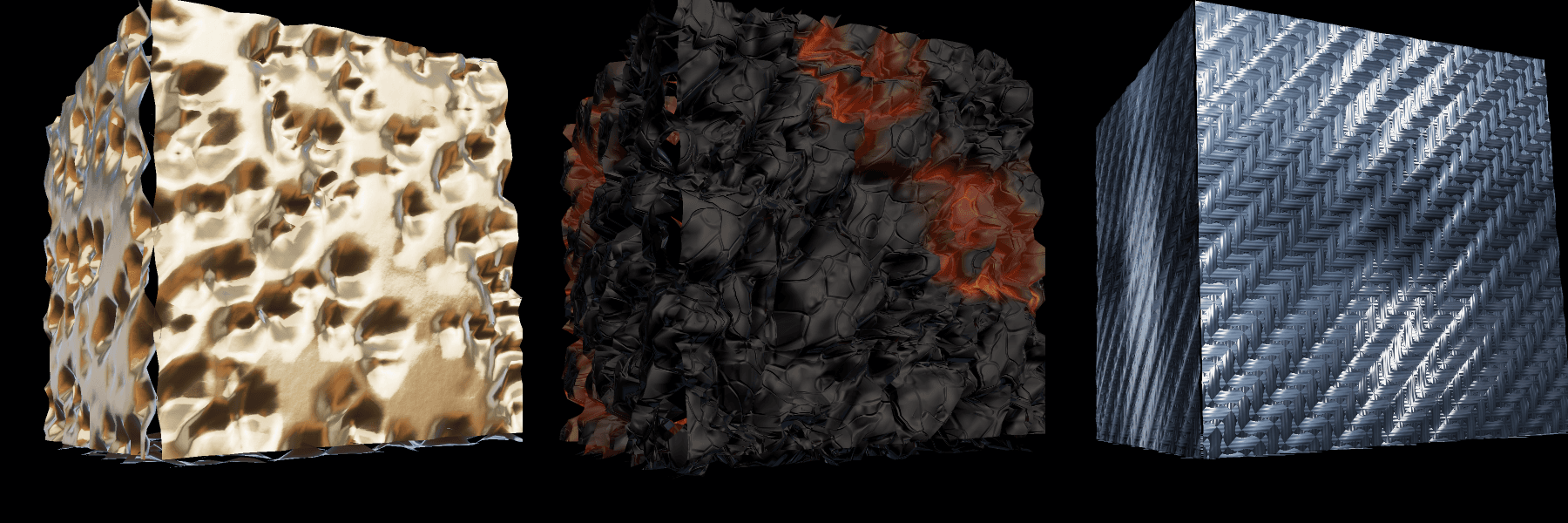

Turning displacement on tore the cube open along every edge. A cube stores each corner vertex once for every face that meets there, and each copy carries its own face's outward direction. Pushed along different directions, the copies pulled apart and left gaps. The fix averages the directions of every copy that shares a position, so all of them move the same way and the edges stay sealed. The shared direction also feeds the height pattern, since the carbon weave's height depends on which way the surface faces.

Takeaways

Frontier models can already build convincing real-world materials from nothing but mathematics. What they still miss is what a person sees at a glance: the straight edges and torn seams here were obvious the moment I looked, and only got fixed once I pointed them out. The mathematics came from the model; getting the result right took clear direction and a few rounds of iteration.
